Highlights

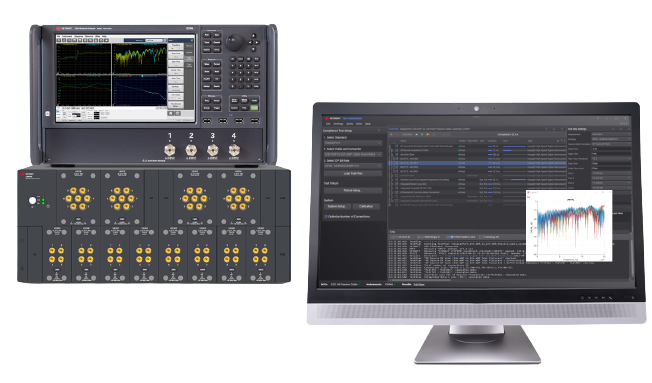

  • Covers the latest DisplayPort and DP Alt Mode on USB Type-C specification to support UHBR, HBR, and RBR speed rates passive cable.
  • Supports 4-Port VNA on E5080B ENA, E5081A ENA-X, N522xB PNA, P502xA/P502xB/P93xxB Streamline VNA series, and PXI-VNA series.
  • Fully automated with L8990M-0LZ 4-to-20 ports switch matrices system.

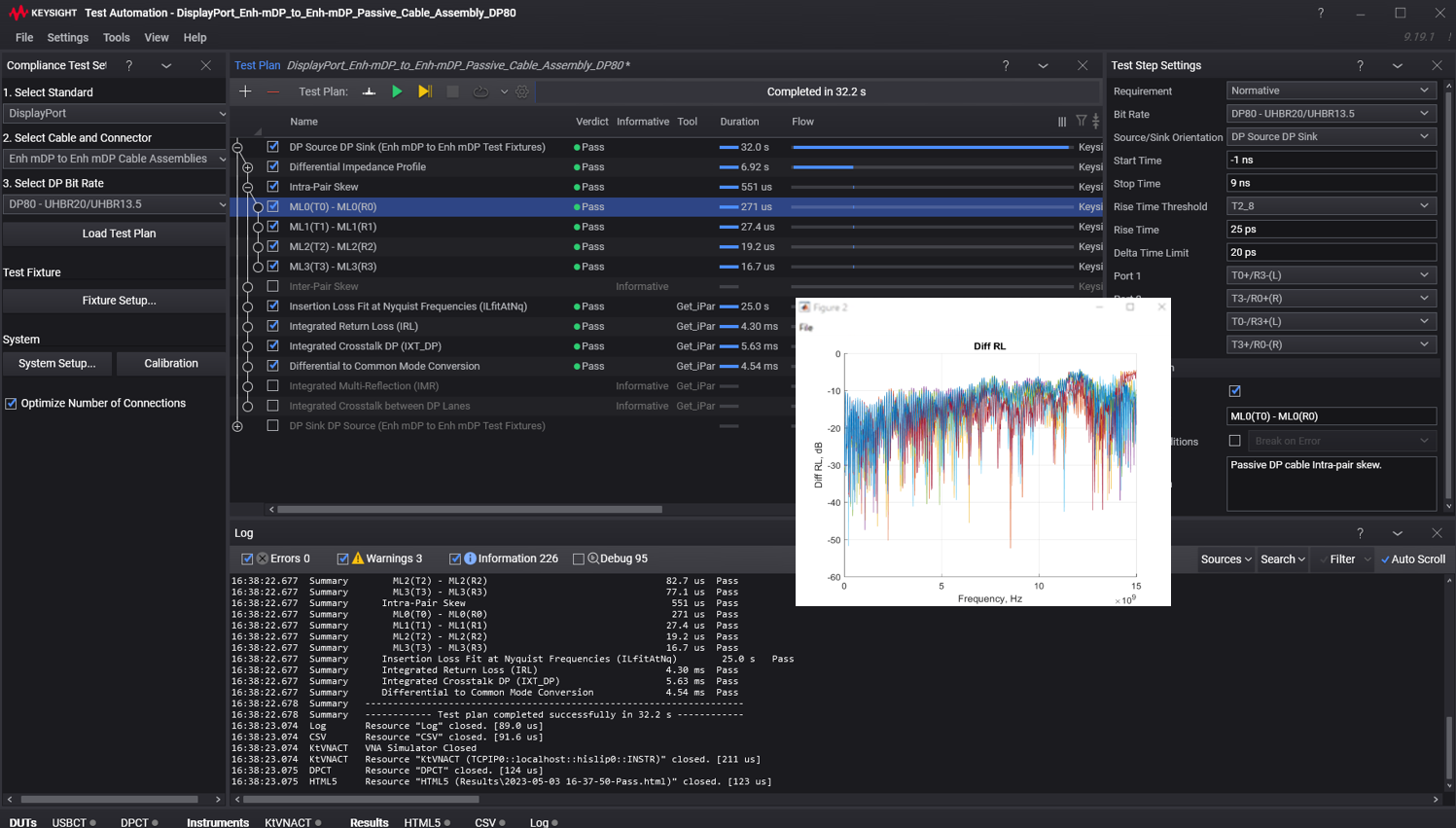

  • Setup wizard for quick setup, calibration, and test selection.
  • Provides test fixture de-embedding and 2X THRU Automatic Fixture Removal (AFR) for accurate measurement results.
  • Test plan customization for specific test applications and validation purposes.
  • Comprehensive test report in HTML and CSV format.
  • Real-time debugging and troubleshooting.
  • TAP platform compatible to test USB Type-C passive and active cables with the additional software license on S94USBCB.
S94DPPCB

Free Trials

Get a 30-day trial license for S94DPPCB DisplayPort DP Cable Compliance Test Software.

  • Request a free trial of the software
  • Enables the application on your PC or VNA
  • Evaluate the full-featured version with no functionality restrictions
S94DPPCB

Interested in a S94DPPCB?

Extend the Capabilities of Your S94DPPCB

Hardware
Software
Sämtliche Software anzeigen
Services
Alle Services ansehen
Unterstützung
Gesamten Support ansehen

Featured Resources

Data Sheets 2024.12.02

S94DPPCB DisplayPort DP Cable Compliance Test Software

S94DPPCB DisplayPort DP Cable Compliance Test Software

This data sheet provides key features and specifications for DisplayPort (DP) and DP Alt Mode on USB Type-C cable compliance test software automation.
